Indexable Rapid Drill WDX-2D

Model No.	Indexable Rapid Drill Specification							Maximum Adjustment Limit	Insert	Wrench	Screw of Insert

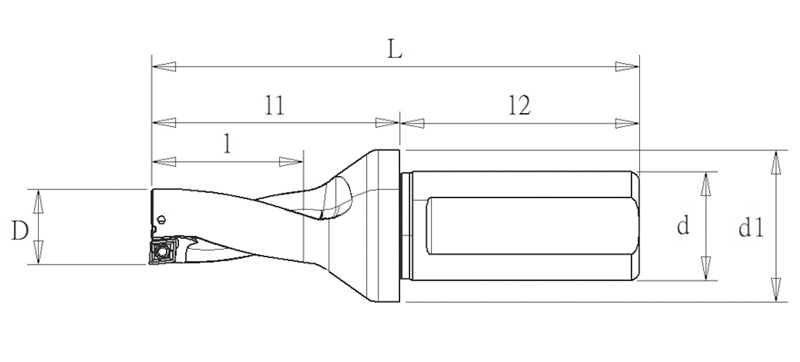

	D	L	l	(l1)	l2	d	d1
WDX13-C20-2D-29L	13.0	88	29	44	44	20	28	0.35	WDXT042004	T5	TS1604
WDX13.5-C20-2D-30L	13.5	89	30	45	44	20	28	0.30	WDXT042004	T5	TS1604
WDX14 -C20-2D-31L	14.0	90	31	46	44	20	28	0.25	WDXT042004	T5	TS1604
WDX14.5-C20-2D-32L	14.5	91	32	47	44	20	28	0.20	WDXT042004	T5	TS1604
WDX15-C20-2D-33L	15.0	92	33	48	44	20	28	0.15	WDXT042004	T5	TS1604
WDX15.5-C20-2D-34L	15.5	93	34	49	44	20	30	0.40	WDXT052504	T6	TS2005
WDX16-C20-2D-35L	16.0	94	35	50	44	20	30	0.40	WDXT052504	T6	TS2005
WDX16.5-C20-2D-36L	16.5	95	36	51	44	20	30	0.35	WDXT052504	T6	TS2005
WDX17-C20-2D-37L	17.0	96	37	52	44	20	30	0.30	WDXT052504	T6	TS2005
WDX17.5-C25-2D-38L	17.5	109	38	53	56	25	32	0.25	WDXT052504	T6	TS2005
WDX18-C25-2D-39L	18.0	110	39	54	56	25	32	0.20	WDXT052504	T6	TS2005
WDX18.5-C25-2D-40L	18.5	111	40	55	56	25	33	0.50	WDXT063006	T7	TS2206
WDX19-C25-2D-41L	19.0	112	41	56	56	25	33	0.45	WDXT063006	T7	TS2206
WDX19.5-C25-2D-42L	19.5	113	42	57	56	25	33	0.40	WDXT063006	T7	TS2206
WDX20-C25-2D-43L	20.0	114	43	58	56	25	33	0.30	WDXT063006	T7	TS2206
WDX20.5-C25-2D-44L	20.5	115	44	59	56	25	33	0.30	WDXT063006	T7	TS2206
WDX21-C25-2D-45L	21.0	116	45	60	56	25	33	0.20	WDXT063006	T7	TS2206
WDX21.5-C25-2D-46L	21.5	117	46	61	56	25	33	0.15	WDXT063006	T7	TS2206
WDX22-C25-2D-47L	22.0	118	47	62	56	25	33	0.10	WDXT063006	T7	TS2206
WDX22.5-C25-2D-48L	22.5	119	48	63	56	25	33	0.05	WDXT063006	T7	TS2206
WDX23-C25-2D-49L	23.0	123	49	67	56	25	37	0.70	WDXT073506	T8	TS2506
WDX23.5-C25-2D-50L	23.5	124	50	68	56	25	37	0.70	WDXT073506	T8	TS2506
WDX24-C25-2D-51L	24.0	125	51	69	56	25	37	0.60	WDXT073506	T8	TS2506
WDX24.5-C25-2D-52L	24.5	126	52	70	56	25	37	0.50	WDXT073506	T8	TS2506
WDX25-C25-2D-53L	25.0	127	53	71	56	25	37	0.50	WDXT073506	T8	TS2506
WDX25.5-C32-2D-54L	25.5	134	54	74	60	32	41	0.45	WDXT073506	T8	TS2506
WDX26-C32-2D-55L	26.0	135	55	75	60	32	41	0.40	WDXT073506	T8	TS2506
WDX26.5-C32-2D-56L	26.5	136	56	76	60	32	41	0.35	WDXT073506	T8	TS2506
WDX27-C32-2D-57L	27.0	137	57	77	60	32	41	0.25	WDXT073506	T8	TS2506
WDX27.5-C32-2D-58L	27.5	138	58	78	60	32	41	0.20	WDXT073506	T8	TS2506
WDX28-C32-2D-59L	28.0	139	59	79	60	32	41	0.15	WDXT073506	T8	TS2506
WDX28.5-C32-2D-60L	28.5	140	60	80	60	32	41	0.10	WDXT073506	T8	TS2506



Model No.	Indexable Rapid Drill Specification							Maximum Adjustment Limit	Insert	Wrench	Screw of Insert
	D	L	l	(l1)	l2	d	d1
WDX29-C32-2D-62L	29.0	143	62	83	60	32	50.0	1.00	WDXT094008	T15	TS3507
WDX29.5-C32-2D-63L	29.5	144	63	84	60	32	50.0	0.95	WDXT094008	T15	TS3507
WDX30-C32-2D-64L	30.0	148	64	88	60	32	54.0	0.90	WDXT094008	T15	TS3507
WDX31-C32-2D-66L	31.0	150	66	90	60	32	54.0	0.80	WDXT094008	T15	TS3507
WDX32-C32-2D-68L	32.0	152	68	92	60	32	54.0	0.70	WDXT094008	T15	TS3507
WDX30-C40-2D-64L	30.0	158	64	88	70	40	54.0	0.90	WDXT094008	T15	TS3507
WDX31-C40-2D-66L	31.0	160	66	90	70	40	54.0	0.80	WDXT094008	T15	TS3507
WDX32-C40-2D-68L	32.0	162	68	92	70	40	54.0	0.70	WDXT094008	T15	TS3507
WDX33-C40-2D-70L	33.0	164	70	94	70	40	54.0	0.55	WDXT094008	T15	TS3507
WDX34-C40-2D-72L	34.0	166	72	96	70	40	54.0	0.45	WDXT094008	T15	TS3507
WDX35-C40-2D-74L	35.0	168	74	98	70	40	54.0	0.35	WDXT094008	T15	TS3507
WDX36-C40-2D-76L	36.0	170	76	100	70	40	54.0	0.20	WDXT094008	T15	TS3507
WDX37-C40-2D-79L	37.0	179	79	109	70	40	49.5	1.00	WDXT125012	T20	TS5011
WDX38-C40-2D-81L	38.0	181	81	111	70	40	49.5	1.00	WDXT125012	T20	TS5011
WDX39-C40-2D-83L	39.0	183	83	113	70	40	49.5	0.90	WDXT125012	T20	TS5011
WDX40-C40-2D-85L	40.0	185	85	115	70	40	49.5	0.80	WDXT125012	T20	TS5011
WDX41-C40-2D-87L	41.0	187	87	117	70	40	49.5	0.70	WDXT125012	T20	TS5011
WDX42-C40-2D-89L	42.0	189	89	119	70	40	49.5	0.60	WDXT125012	T20	TS5011
WDX43-C40-2D-91L	43.0	191	91	121	70	40	49.5	0.50	WDXT125012	T20	TS5011
WDX44-C40-2D-93L	44.0	193	93	123	70	40	49.5	0.50	WDXT125012	T20	TS5011
WDX45-C40-2D-95L	45.0	195	95	125	70	40	49.5	0.40	WDXT125012	T20	TS5011
WDX46-C40-2D-97L	46.0	197	97	127	70	40	49.5	1.50	WDXT156012	T25	TS6015
WDX47-C40-2D-99L	47.0	199	99	129	70	40	49.5	1.40	WDXT156012	T25	TS6015
WDX48-C40-2D-101L	48.0	201	101	131	70	40	49.5	1.30	WDXT156012	T25	TS6015
WDX49-C40-2D-103L	49.0	203	103	133	70	40	49.5	1.20	WDXT156012	T25	TS6015
WDX50-C40-2D-105L	50.0	205	105	135	70	40	49.5	1.10	WDXT156012	T25	TS6015
WDX51-C40-2D-107L	51.0	207	107	137	70	40	49.5	1.00	WDXT156012	T25	TS6015
WDX52-C40-2D-109L	52.0	209	109	139	70	40	50.5	0.90	WDXT156012	T25	TS6015
WDX53-C40-2D-111L	53.0	211	111	141	70	40	51.5	0.80	WDXT156012	T25	TS6015
WDX54-C40-2D-113L	54.0	213	113	143	70	40	52.5	0.60	WDXT156012	T25	TS6015
WDX55-C40-2D-115L	55.0	215	115	145	70	40	53.5	0.50	WDXT156012	T25	TS6015
WDX56-C40-2D-120L	56.0	222	120	152	70	40	54.0	2.00	WDXT186012	T25	TS6015
WDX57-C40-2D-122L	57.0	224	122	154	70	40	55.0	1.80	WDXT186012	T25	TS6015
WDX58-C40-2D-124L	58.0	226	124	156	70	40	56.0	1.70	WDXT186012	T25	TS6015
WDX59-C40-2D-126L	59.0	228	126	158	70	40	57.0	1.60	WDXT186012	T25	TS6015
WDX60-C40-2D-128L	60.0	230	128	160	70	40	58.0	1.50	WDXT186012	T25	TS6015
WDX61-C40-2D-130L	61.0	232	130	162	70	40	59.0	1.40	WDXT186012	T25	TS6015
WDX62-C40-2D-132L	62.0	234	132	164	70	40	60.0	1.30	WDXT186012	T25	TS6015
WDX63-C40-2D-134L	63.0	236	134	166	70	40	61.0	1.20	WDXT186012	T25	TS6015
WDX64-C40-2D-136L	64.0	238	136	168	70	40	62.0	1.00	WDXT186012	T25	TS6015
WDX65-C40-2D-138L	65.0	240	138	170	70	40	63.0	0.90	WDXT186012	T25	TS6015
WDX66-C40-2D-140L	66.0	242	140	172	70	40	64.0	0.70	WDXT186012	T25	TS6015
WDX67-C40-2D-142L	67.0	244	142	174	70	40	65.0	0.60	WDXT186012	T25	TS6015
WDX68-C40-2D-144L	68.0	246	144	176	70	40	66.0	0.50	WDXT186012	T25	TS6015
